Exterior luminaire Lego 4x2
Medium-sized LED linear luminaire with built-in power supply.
Body Color:
Request Price

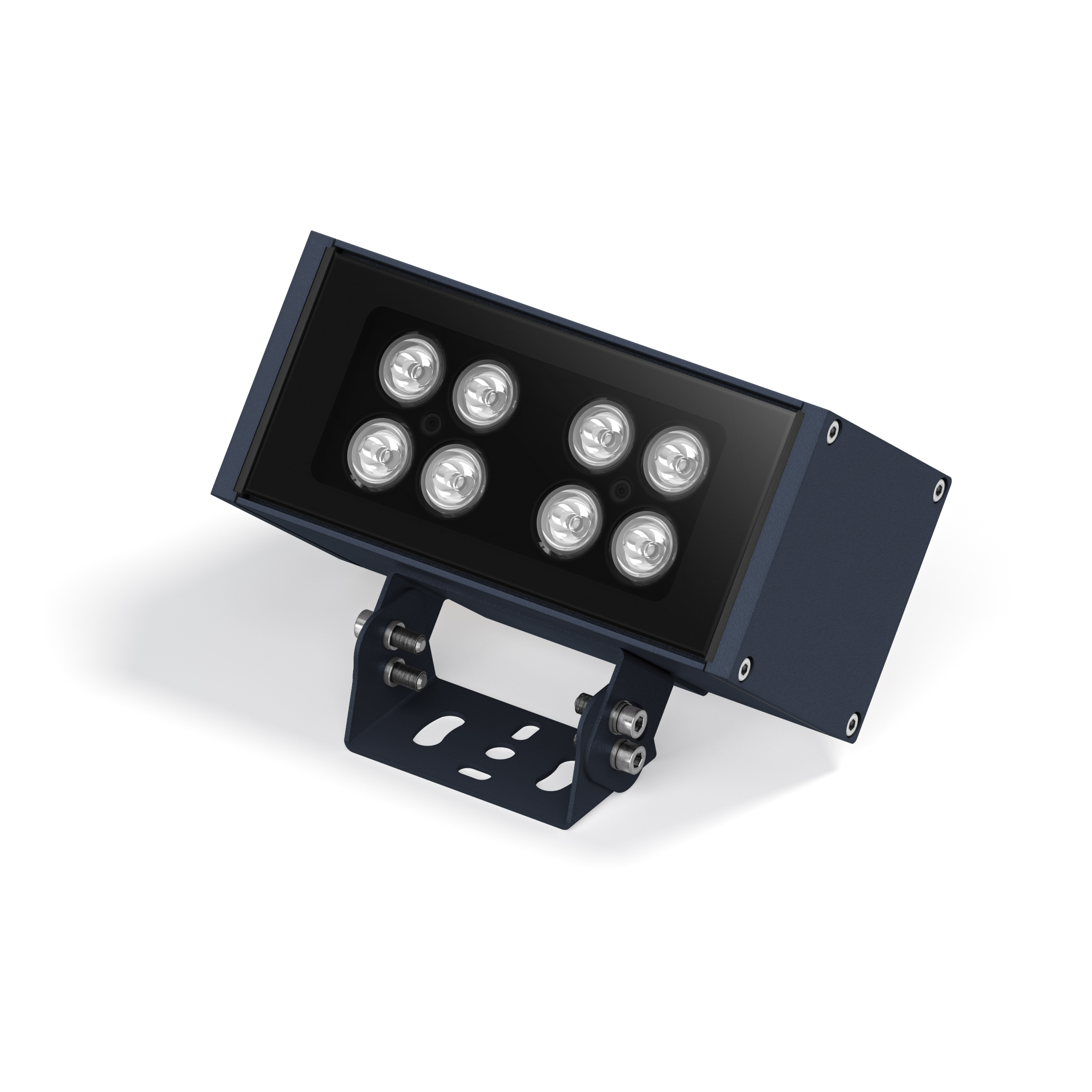

Description Lego 4x2
A compact LED luminaire with clean lines and serious performance. The housing is made of extruded aluminum profile, powder-coated. The power supply is installed inside the housing. Tempered glass with high light transmission provides reliable protection against mechanical impact up to IK08. The luminaire can be manufactured in various lengths that are multiples of four LEDs: 2×2, 4×2, 6×2, 8×2.
Specifications
Parameters
Dimensions, mm
(90, 170, 250, 330) × 80 × 87
Power, W
10, 20, 30, 40 W (custom power available on request)
Optics
Narrow Spot, Spot, Medium, Flood, Wide, Wide flood, Oval flood, Wall wash
Color Temperature *
3000K, 4000K, RGBW (Multichip) (variations available on request)
IP Rating
66
Power Supply
Built into housing
Supply Voltage
230 V 50-60 Hz
Mounting Method
Wall-mounted, ceiling (custom brackets available on request)
Accessories
Honeycomb, visor, cable connectors, junction boxes, stand
Control
DALI, 1-10V, DMX512, DMX-RDM (details available from manufacturer)
Download materials
Lego luminaire
in completed projects
in completed projects
The Lego lighting system is designed to provide uniform and comfortable illumination.
Projects with Lego
