Exterior luminaire Light Column
Outdoor stationary luminaire for landscape territory illumination and park area lighting.
Body Color:
Request Price
Description Light Column

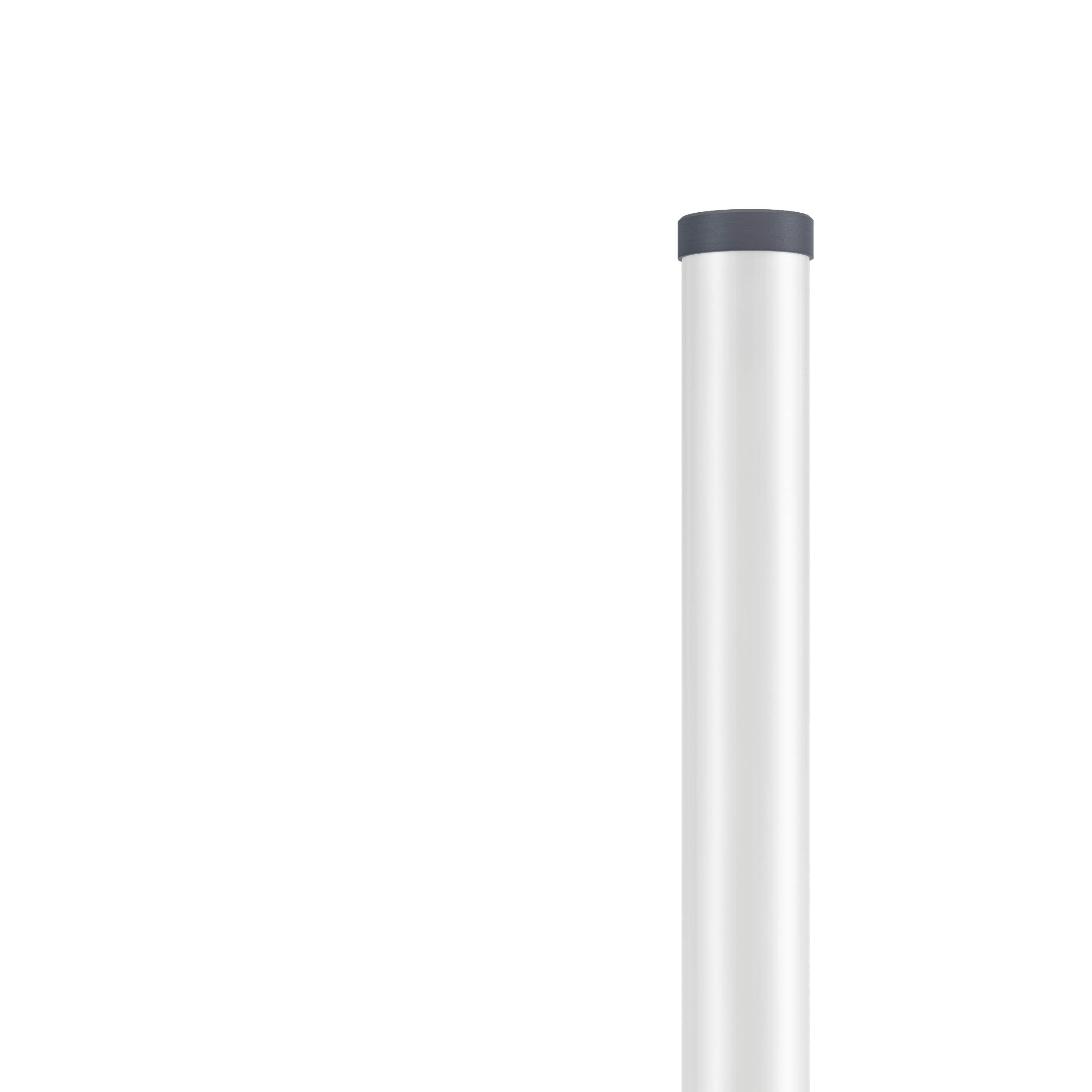

The luminaire pole is made of extruded aluminum tube with a 200 mm diameter. The light section consists of a transparent polycarbonate tube with a COB matrix light source and forming lens. Various beam angles are available. A Honeycomb anti-glare grid ensures eye comfort. The luminaire has an access hatch for easy installation and maintenance. Mounted on an anchor element via flange installation. Available pole heights: 1000, 1500, 2000, 2500 mm. Available light section heights: 500, 1000, 1500 mm. Unique height combinations available on request; total height must not exceed 4000 mm. Heights above 4000 mm may require additional fixing elements. Opal diffuser and RGBW version with DMX control available on request.
Specifications
Parameters
Dimensions, mm
650×100×220 / 950×100×220
Power, W
25...65 W (custom power available on request)
Optics
Symmetrical, Asymmetrical
Color Temperature
3000K, 4000K, RGBW
IP Rating
66
Power Supply
In the pole
Supply Voltage
230 V 50-60 Hz
Mounting Method
On embedded anchor
Accessories
Cable connectors, junction boxes, anchor element
Control
DALI, 1-10V, DMX512, DMX-RDM (details available from manufacturer)
