Exterior luminaire Miniled
Minimalist, simple and reliable luminaire for creating narrow light lines for flood lighting of facades, cornices or other elements.
Body Color:
Request Price
Description Miniled
Compact LED linear luminaire with external power supply. The housing is made of extruded aluminum profile, powder-coated. Protective cover: opal or clear polycarbonate depending on configuration. Available in 2 configurations:

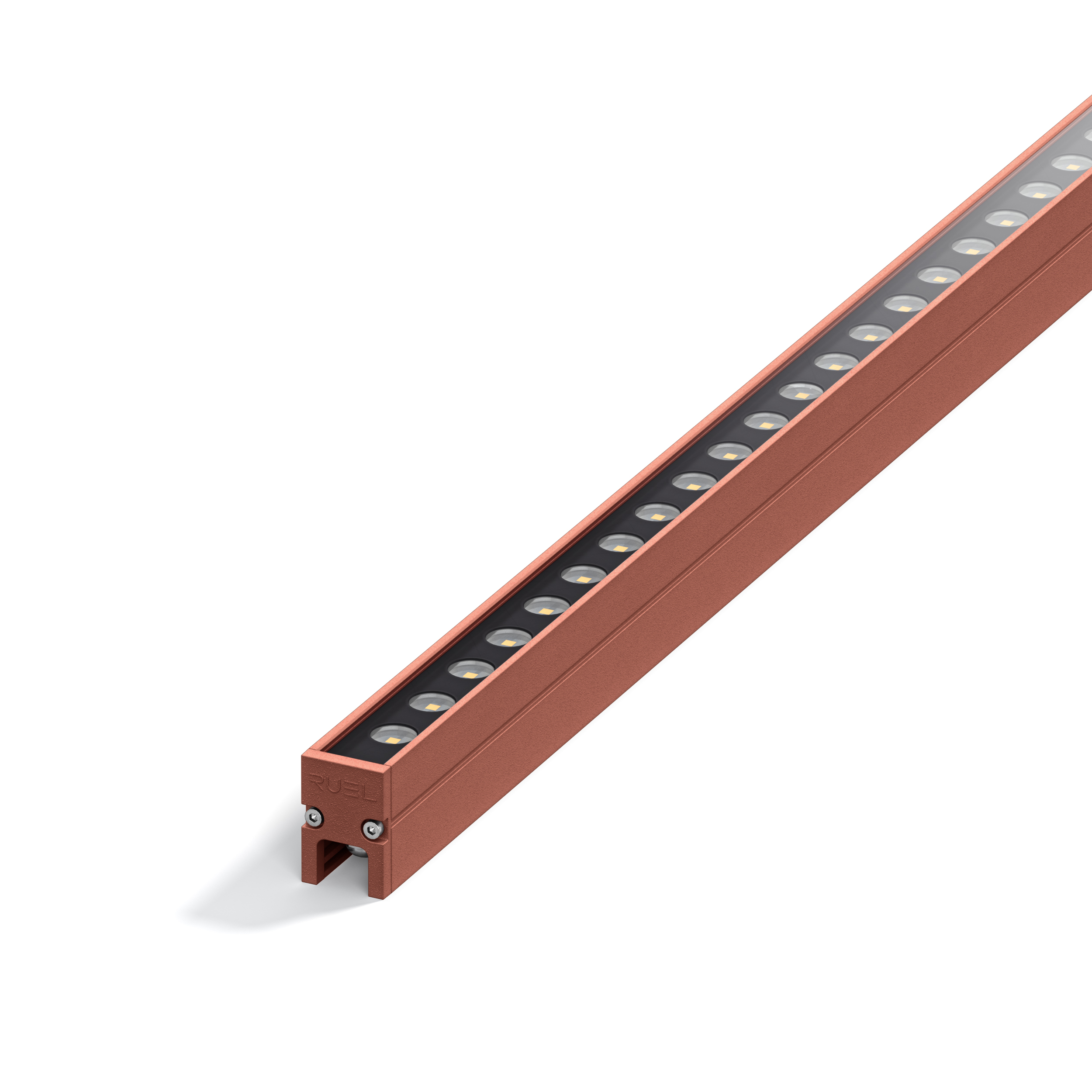

- With individual LEDs and optics (multiples of 315 / 615 / 915 / 1215 / 1515 mm). Powered by DC current up to 700 mA.

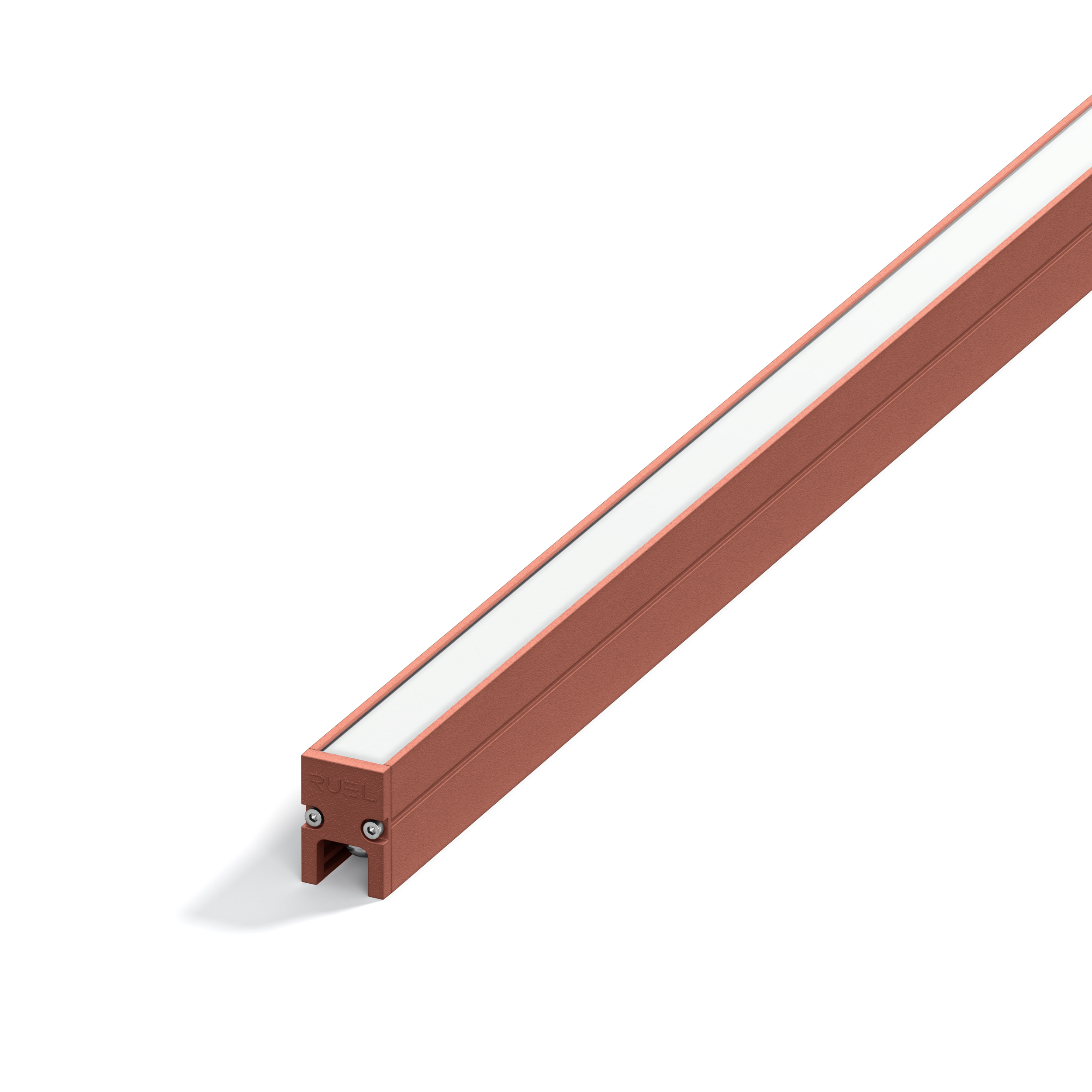

- With opal diffuser (multiples from 300 to 3000 mm in 50 mm increments). Powered by constant voltage 24/48V.
Specifications
Parameters
Dimensions, mm
13×16×(500..5000) mm (custom lengths available on request)
Power, W
10..20 W/m (custom power available on request)
Optics
Spot, Medium, Flood, Wide Flood, Oval flood, Wall grazing, General, Diffuse
Color Temperature
3000K, 4000K (other color temperatures available on request), RGB, RGBW, Tunable White
IP Rating
68
Power Supply
External
Power supply
Option CV (constant voltage): 24/48 V DC / Option CC (constant current): 100…700 mA
Mounting Method
Wall-mounted, surface-mounted, pendant. (custom brackets available on request)
Accessories
Cable connectors, junction boxes
Control
DALI, 1-10V, DMX512, DMX-RDM (details available from manufacturer)
Download materials
Miniled luminaire
in completed projects
in completed projects
The Miniled lighting system is designed to provide uniform and comfortable illumination.
Projects with Miniled
