Exterior luminaire Outliner M

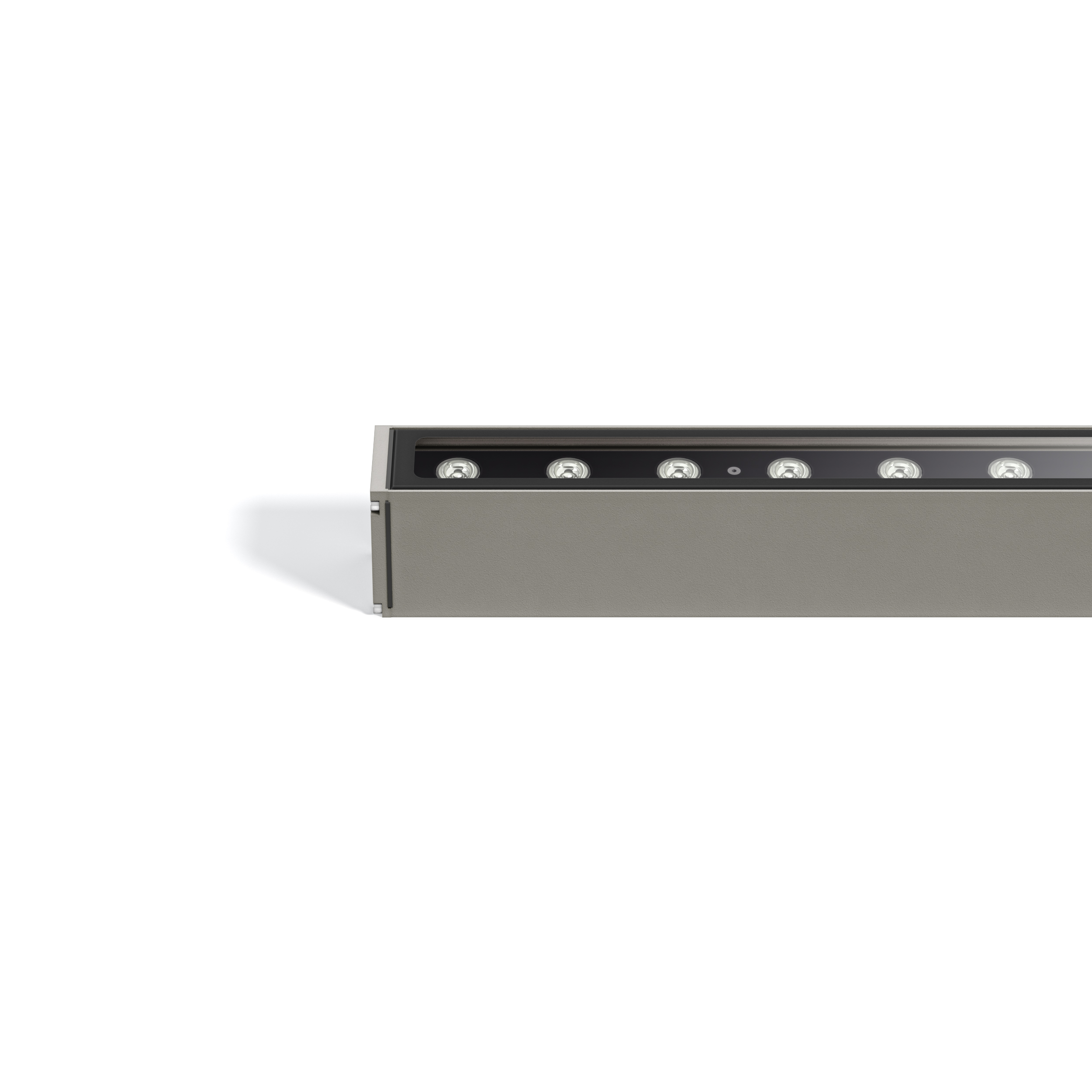

Medium-sized LED linear luminaire with built-in power supply.
Body Color:
Request Price
Description Outliner M
Medium-sized LED linear luminaire with built-in power supply. The housing is made of extruded aluminum profile, powder-coated. Tempered silicate glass with high light transmission and black silkscreen printing provides protection against mechanical impact up to IK08.
Specifications
Parameters

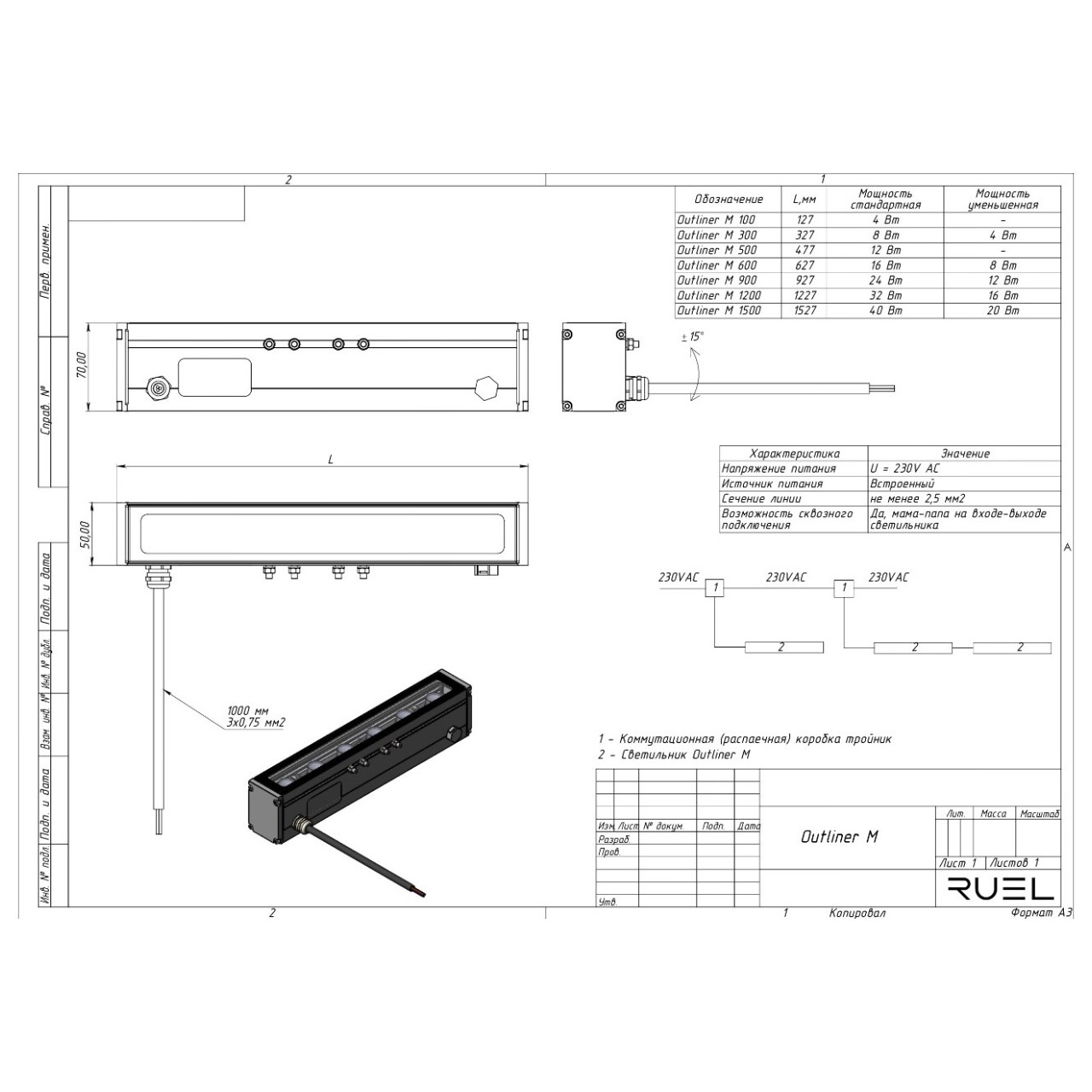

Dimensions, mm
127, 327, 477, 627, 927, 1227, 1527 (custom lengths available on request)
Power, W
Standard: 3, 8, 12, 16, 24, 32, 40
Reduced: 4, 8, 12, 16, 20
(power up to 12 W per 300 mm segment available on request)
Reduced: 4, 8, 12, 16, 20
(power up to 12 W per 300 mm segment available on request)
Optics
See table
Color Temperature *
3000K, 4000K, RGB, RGBW (Multichip) (variations available on request)
IP Rating
66, 67 (with sealed cable assembly at the end of the power cable)
Power Supply
Built into housing
Supply Voltage
230 V 50-60 Hz

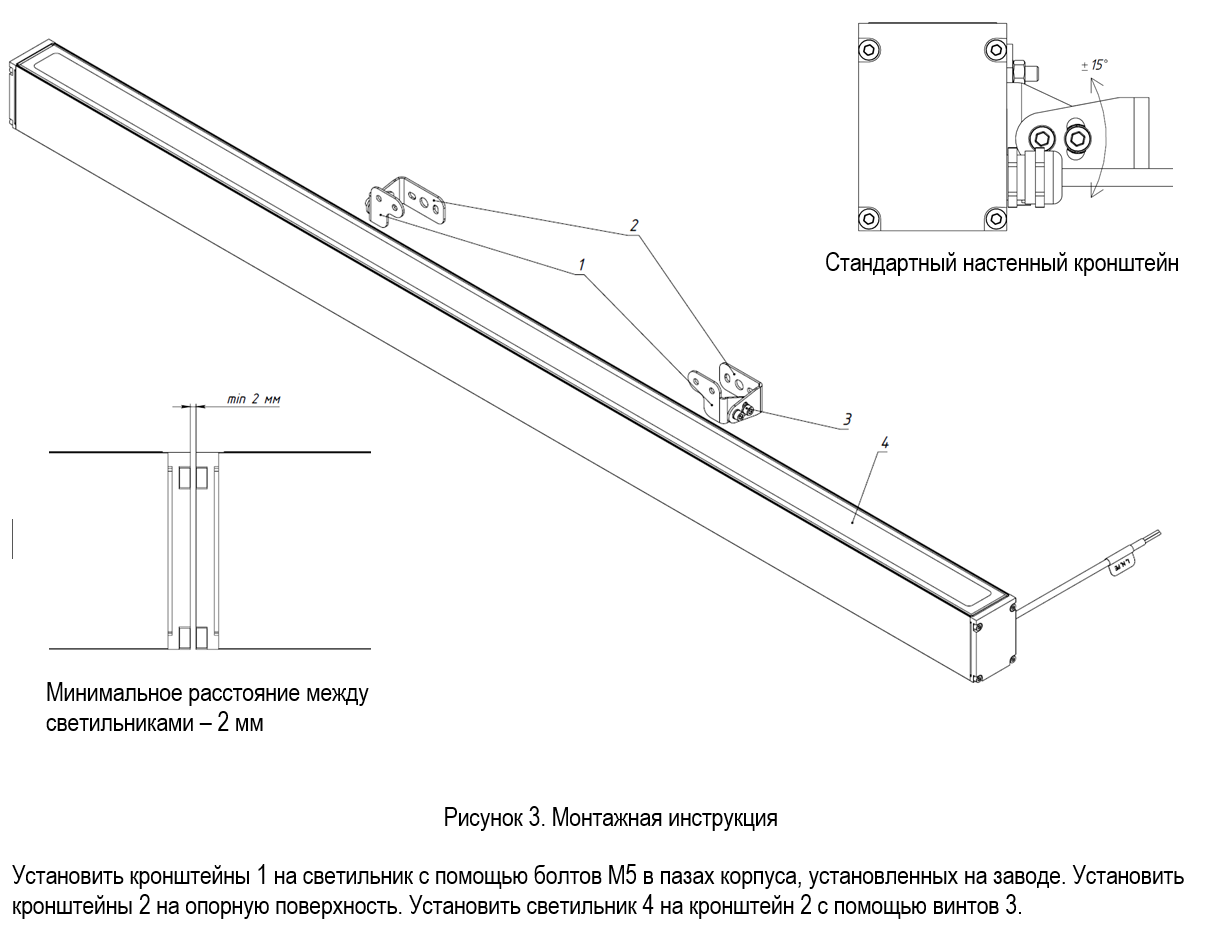

Mounting Method
Wall-mounted, ceiling (custom brackets available on request)
Accessories
Honeycomb, visor, cable connectors, junction boxes, brackets
Through-wiring
Yes, possible
Control
DALI, 1-10V, DMX512, DMX-RDM (details available from manufacturer)
* — non-standard color temperatures available on request, including RGB, Amber, R, G, B, 2700K, 3500K, etc.
