Exterior luminaire Outliner S
Compact LED linear luminaire (37×33 mm) with external power supply.

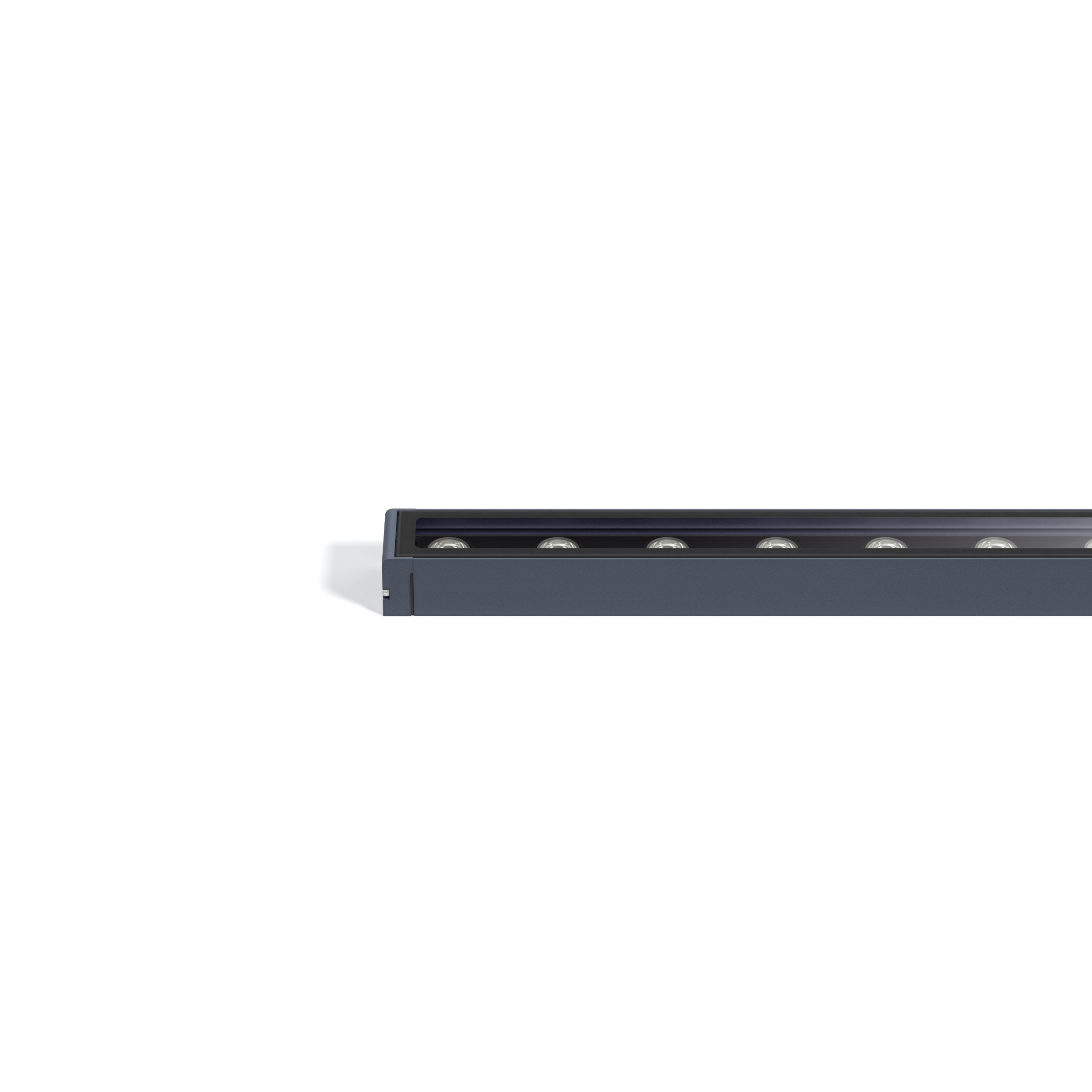

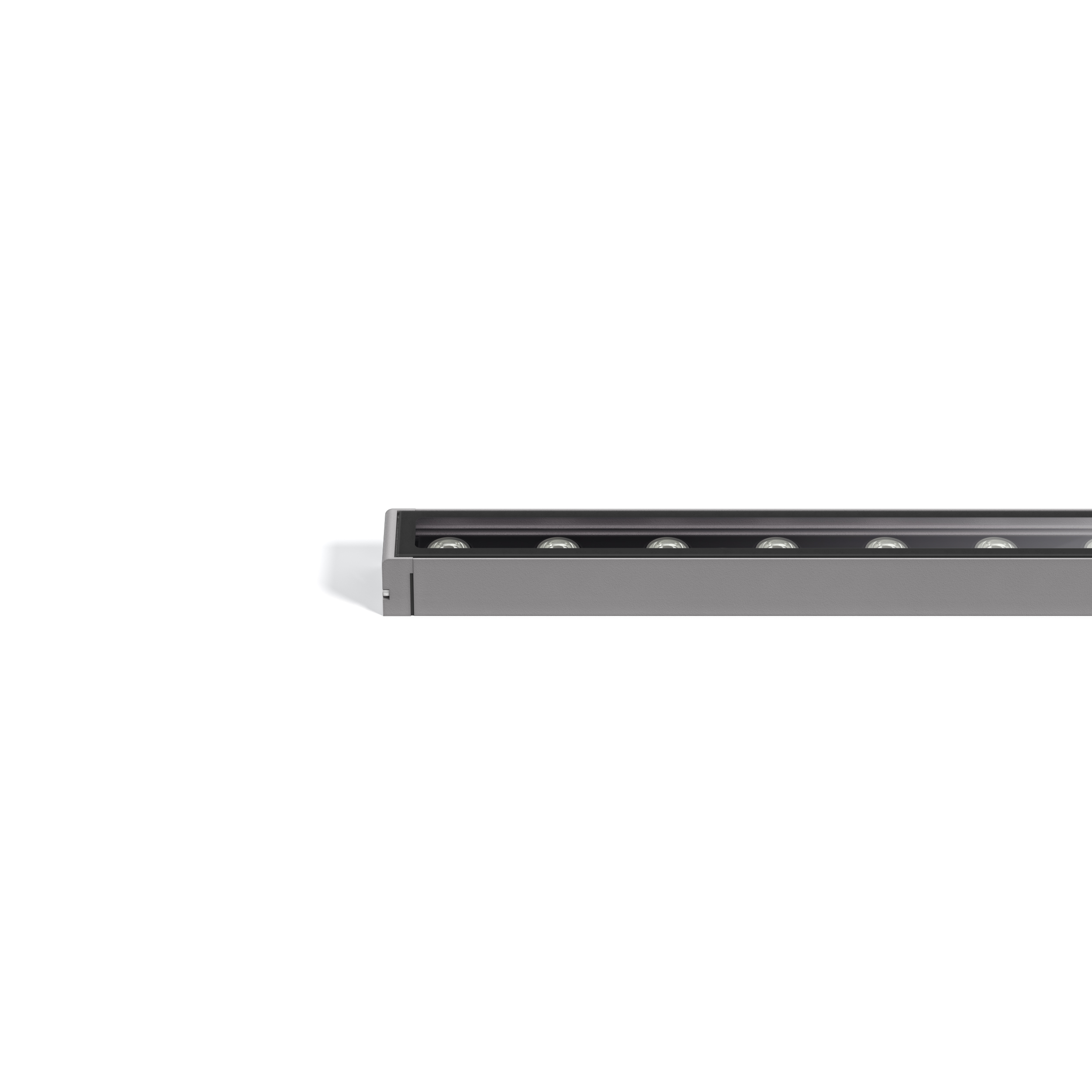

Body Color:
Request Price
Description Outliner S

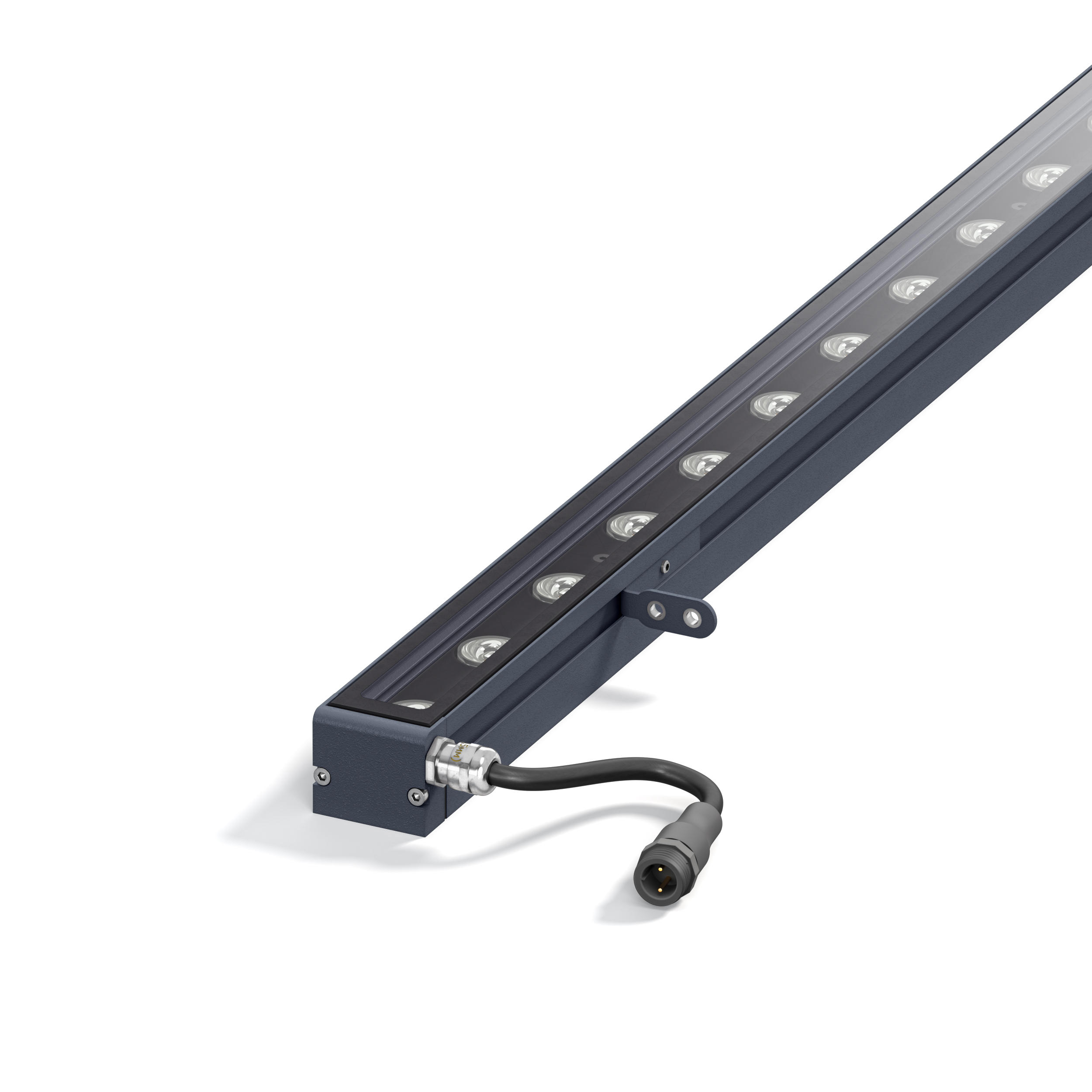

Compact LED linear luminaire (37×33 mm) with external power supply. The housing is made of extruded aluminum profile, powder-coated. Tempered silicate glass with high light transmission and black silkscreen printing provides protection against mechanical impact up to IK08. Each LED module contains a pulse DC-DC converter, ensuring high efficiency and low ripple. Thanks to 48V DC supply, the line length from power supply to luminaire is significantly increased, providing additional installation flexibility and eliminating the voltage-drop effect due to conductor losses.
Specifications
Parameters

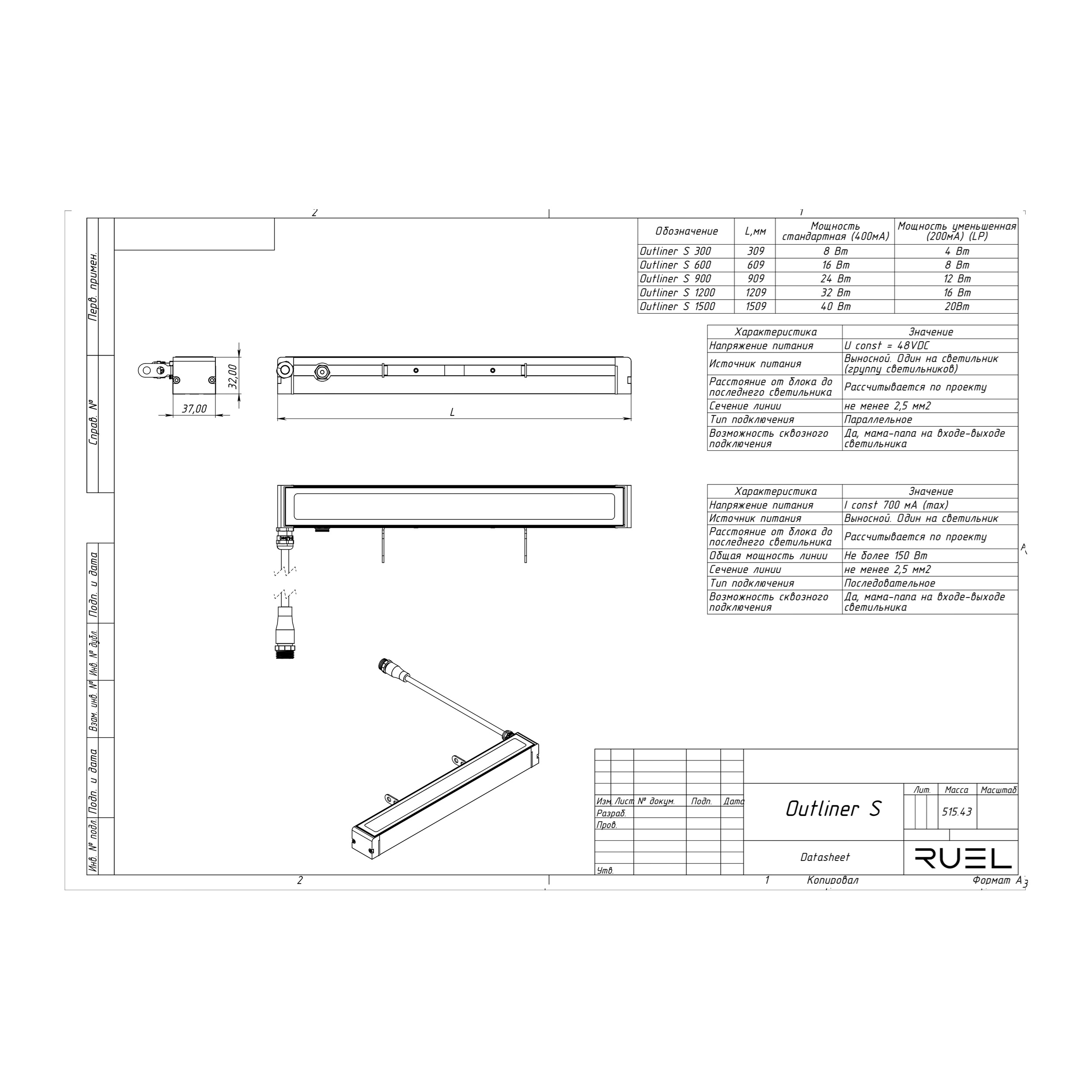

Dimensions, mm
309, 609, 909, 1209, 1509 (custom lengths available on request)
Power, W
Standard: 8, 16, 24, 32, 40 W. Reduced: 4, 8, 12, 16, 20 W. (power up to 12 W per 300 mm segment available on request)
Optics
Spot, Medium, Flood, Wide Flood, Diffuse, General, Wall Washer, WG Spot, WG Medium, WG Flood, WG Wide flood
Color Temperature *
3000K, 4000K
IP Rating
66, 67 (with sealed cable assembly at the end of the power cable)
Power Supply
External
Supply Voltage
"Version U" U = 48VDC "Version I" I const = 700mA (max)
Mounting Method
Wall-mounted, ceiling (custom brackets available on request)
Accessories
Brackets, Honeycomb for glass, anti-glare visor, other connection accessories
Through-wiring
Yes, possible
Control
PWM, DALI, 1-10V, DMX512, DMX-RDM (details available from manufacturer)
* — non-standard color temperatures available on request, including RGBW, RGB, Amber, R, G, B, 2700K, 3500K, etc.
